professional factory of pipe video inspection with 512 hz transmitter

FOB Reference Price:Get Latest Price
1 Piece/Pieces pipe video inspection (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Wopson
Model Number:
WPS-710DNL
Type:
Digital Camera
Style:
Hidden Camera
Sensor:
CCD
Technology:
Infrared
Special Features:
Waterproof / Weatherproof
23*141mm transmitter camera:
5mm push rod cable
waterproof ipx8 color cameras:
pipe inspection dvr
pipe video inspection:
pipe inspection camera
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month pipe video inspection
Packaging & Delivery
Packaging Details
As customer request
Port
shenzhen
Lead Time :
3-5 work days

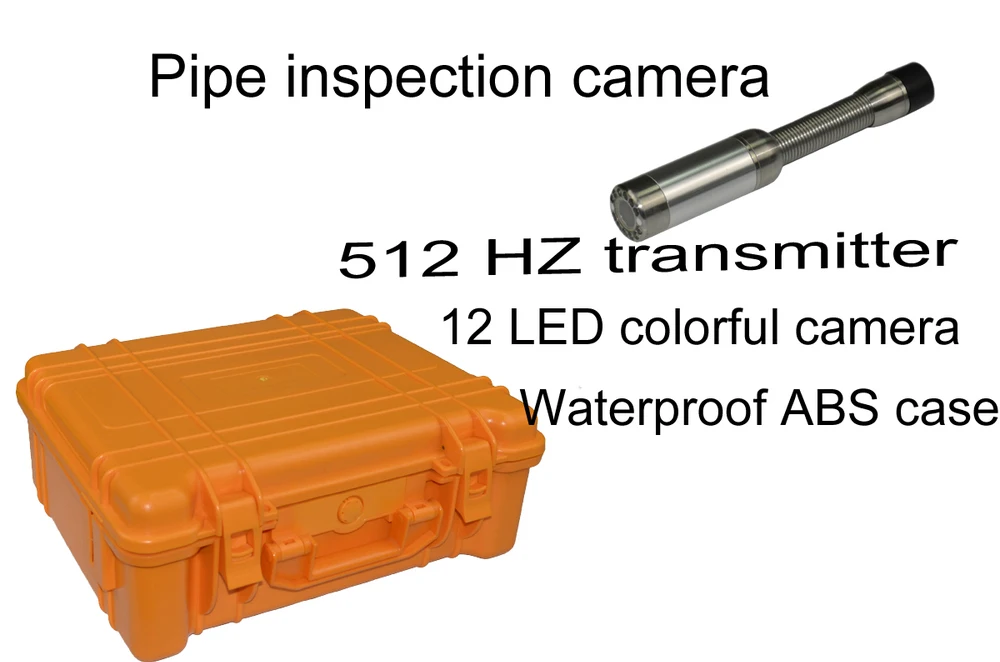

professional factory of pipe video inspection with 512 hz transmitter

pipe video inspection



specifications



Camera size:23*141mm  with 512 hz transmitter
Cable length:20m/30m/40m
7 inch TFT color monitor
Waterproof IP68









Camera

Control Box

Cable Wheel

Camera size: ø23mmX141mm

With 512 hz transmitter

Sensor size:1/4 inch

View angle:120°

Leds adjustable

Camera work current:100M;

Camera power supply:DC 12V

Camera light:12PCS white LEDS

TotalPixels:

PAL:710X576;
NTSC:720X480

Camera glass material:sapphire glass

Camera shell material:stainless steel

DVR power supply:12V

DVR work current:200MA

Storage medium:SD card(max 32G)

Digital clock and digital calendar

Battery level display

DVR Total Pixels:720X576 (D1)

Picture snap and movie record

Movie format:AVI

Microphone Audio record

Stereo earphone output

Cable size: ø320mmX110(h)

Wire material:fiberglass rod

Fiberglass length:20m(standard)

Fiberglass diameter: ø4.8mm

Fiberglass

color:yellow

LI-ION Battery

Monitor



Total Power:14W

Charge time:5hours

Protective voltage:8.1V

12V  4000MAH  li-ion

battery(18650)

Work time: 260minutes

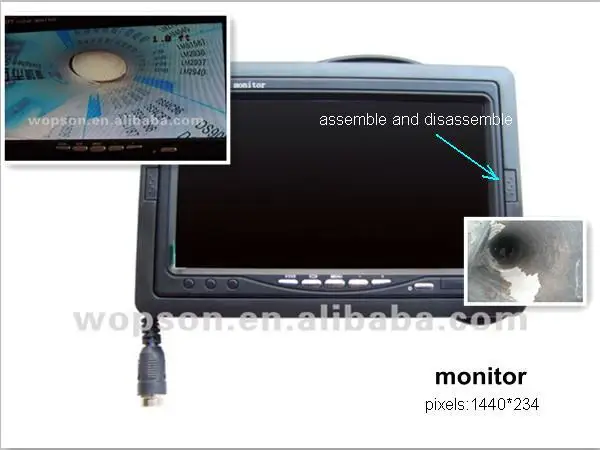

Monitor size:7inch TFT color

Monitor Total Pixels:1440X234

Monitor power supply: DC 12V

Osd language: English

Up, down, left, right adjustable

16:9&4:3 model

Sunshade include



MICROPHONE

CHARGER

Case

Frequency response: 20-20KHz

Sensitivity: -47DB±2DB

Output impedance: 2.2KΩ

Line Length: 1 m



Input: AC100-240V~50/60Hz

Output: DC 12V/1000MA

DC plug diameter: 2.1mm

Size:L520*W435*H200mm

Material: engineering plastics

Empty case weight: 5.9 kg

Water proof

Color: orange/green/black

Special
Camera shell material:Stainless steel

Camera glass material:Sapphire glass

View angle:120°

Camera light:12pcs high light white LEDS

Storage medium:SD card(max 32G)

Microphone Audio record

Stereo earphone output

Wire wheel wearable connector

Operating temperature: -10 to 50 degrees Celsius,

                  RH 95% maximum

Storage temperature:  -20 to 70 degrees Celsius,







 pipe video camera inspectionsewer camera inspectionmonitor1




pipe video inspection.jpg



FAQ

we have 6mm,23mm,40mm,50mm Pipe Inspection Camera, So our pipe inspection equipment can inspect 10-400mm  pipe.IMG_0876.JPG



Packaging & Shipping

Package: Carton Box Package or As customer request





Shipping: DHL, FEDEX,TNT,EMS in 3-5 work days arrive.



Our Services

OEM order is welcomed

And We can print the customer brand  logo on the Product in Free.
