High Technology Pipe Inspection Robot with push rod snake camera inspection

FOB Reference Price:Get Latest Price
US $1,498-4,999 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Wopson
Model Number:
712DNK
Style:
Dome Camera
Sensor:
CCD
Special Features:
Waterproof / Weatherproof
50*76mm camera:
30 led light inspection camera
Self-levling:
meter counter
9mm figberglasses cable:
recorder
Pipe Inspection Camera:
Sewer pipe inspection camera
Plumbing Inspection Tool:
Plumbing Inspection Camera
Sewer Inspection Camera:
Pipe Inspection Equipment
Type:
Digital Camera
Technology:
Infrared
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month Pipe Inspection Robot
Packaging & Delivery
Packaging Details
Carton Box or As customer request
Port
shenzhen
Product Application

Our advantages



♦ Direct manufacturer;                                                     ♦ 9yeas OEM&ODM experience;

♦ Rohs,FCC,CE,EMC Certification;                                    ♦ ISO9001 certification;


♦ National High-tech Enterprises;                                    1year warranty.



Product Application

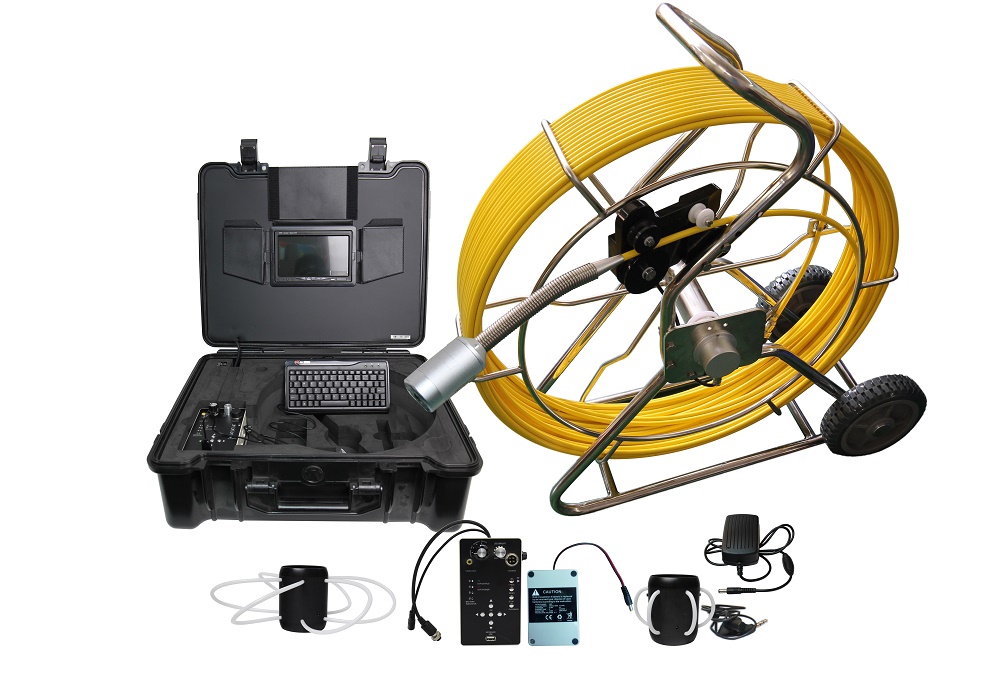

WOPSON pipe Cameras are used in a lot of different fields and are specifically designed to make it easier for plumbers, contractors, inspectors, engineers, municipal workers and other professionals to inspect the areas that are normally hard to reach. These inspection devices can reach and explore difficult spots in waste water systems, storm water systems, pipelines of different kind, drains, ducts and other hard-to-see areas.

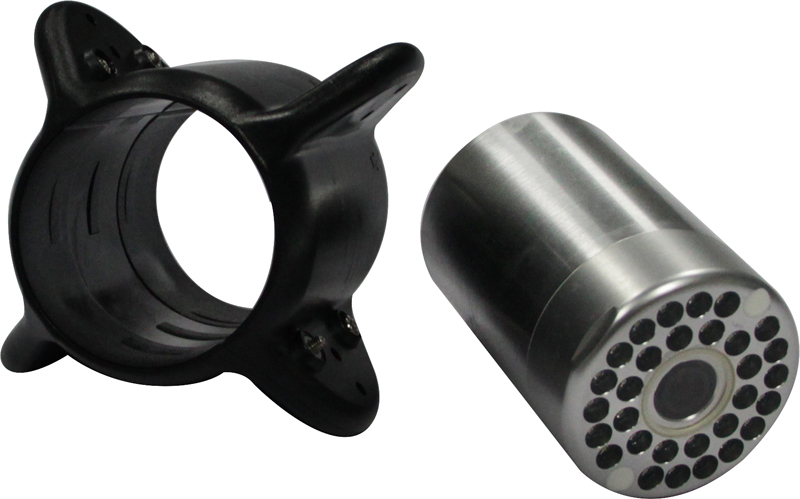

Camera

Control Box

Cable Wheel

Camera size: ø50mmXL84mm

Built-in 512 hz transmitter

Sensor size:1/4 inch

View angle:120°

Leds adjustable

Camera work current:100M;

Camera power supply: DC 12V

Camera light:30PCS white LEDS

Total Pixels:PAL:720X576;

NTSC:720X480

Camera glass material: sapphire glass

Camera shell material: aluminium alloy



DVR power supply:12V

DVR work current:200MA

Storage medium: SD card(max 32G)

Digital clock and digital calendar

Battery level display

DVR Total Pixels:720X576 (D1)

Picture snap and movie record

Movie format: AVI

Microphone Audio record

Stereo earphone output

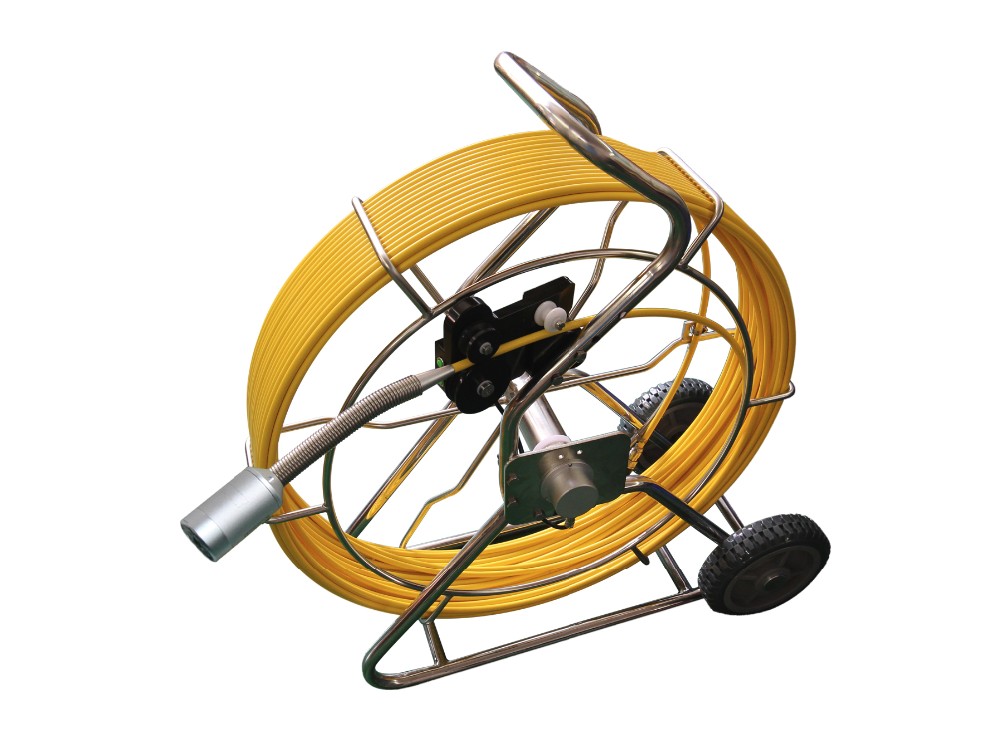

size:
770(L)*371(W)*810(H)mm

Wire material: fiberglass rod

Fiberglass length: 120m(standard)

Fiberglass diameter: ø9mm

Fiberglass color: yellow

Cable wheel material: Stainless steel

LI-ION Battery

Monitor

Keyboard

Total Power: 14 W

Charge time: 5 hours

Protective voltage: 8.1V

12V  4000MAH  li-ion

battery(18650)

Work time: 260minutes



Monitor size:7inch TFT color

Monitor Total Pixels:1440X234

Monitor power supply: DC 12V

Osd language: English

Up, down, left, right adjustable

16:9&4:3 model

Sunshade include

Keyboard size:220X110X15mm

Language: English

Keyboard interface: USB import

Text edit line:

PAL 28 letter 15 line

NTSC 26 letter 12 line

Max edit page: 4 pages

MICROPHONE

CHARGER

Case

Frequency response: 20-20KHz

Sensitivity: -47DB±2DB

Output impedance: 2.2KΩ

Line Length: 1 m



Input: AC100-240V~50/60Hz

Output: DC 12V/1000MA

DC plug diameter: 2.1mm

Size:L520*W435*H200mm

Material: engineering plastics

Empty case weight: 5.9 kg

Water proof

Color: orange/green/black



Special

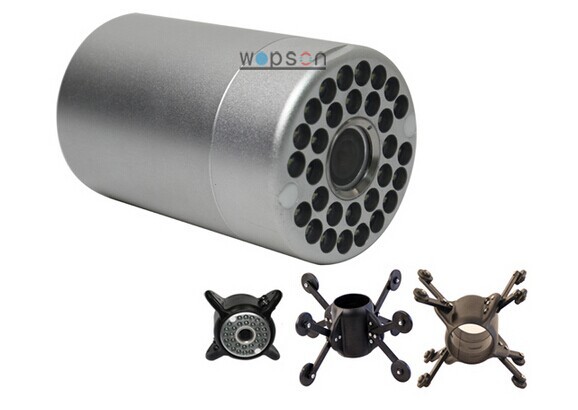

Pipe Inspection Robot

Built-in 512 hz transmitter
Camera shell material: Stainless steel

Camera glass material: Sapphire glass

View angle: 120°

Camera light: 30pcs high light white LEDS

Storage medium: SD card(max 32G)

Microphone Audio record

Stereo earphone output

Wire wheel wearable connector

Operating temperature: -10 to 50 degrees Celsius,

                   RH 95% maximum

Storage temperature: -20 to 70 degrees Celsius,

                  RH 95% maximum









Our Company





FAQ

1.Q:If i order today, how long it takes for the shipment?
A: Our delivery time is about 3-5 days after got your payment and the shipping time is about 4-10 days upon your choose the shipment.


2.Q:What’s the payment terms?
A:We accept T/T, paypal,western union,Welcome to use the Alibaba Trade Assurance .


3.Q:Could you offer wholesale price?
A: Yes, of course. If you order in large quantity, we can give you the wholesale price and more discount.


4.Q:Can you give me best shipping cost?
A: Sure, we give our customer best shipping cost and fast shipping time. Usually we use DHL, UPS, Fedex, TNT to keep the good quality.


5.Q:Are the quality of your product guaranteed?
A: We provide one year limited mfg. warranty, We have QC to control the quality one by one. So do not worry about the quality. If you got a defective item, we can refund your money or send you new item as compensation.


6.Q:I'm shopping at your company at the first time, how can I trust you?
A: We totally understand if you have some doubt about us at our first cooperation. You are welcome to visit our company or shop anytime you like.


7.Q:I'm a potential customer, can I get some free samples first?
A: We can provide a sample to you for test before give us a big order.but so sorry to tell you that there are no free samples in our company.


8.OEM&ODM service.
OEM/ODM service is welcome,we will provide all the details to you during the mass production.
Customize your mould according to your need.
your requirement and complaints are highly respected.
necessary test and certification can be obtained as you request.





Related Products
Contact us


Manager: David                    Mobile : 8613923716324  Phone:8675584691436

Company:ShenZhen Wopson Electrical Co., Ltd
Address:   3F,No.4BLDG, Chunhu Industrial Zone , E'gongling,Pinghu, Longgang District,Shenzhen City, P.R.C
